The slide gate valve, also known as the gate valve, is a valve that relies on the lifting of the gate to realize the opening and closing of the pipeline. Its core principle is to control the flow and cutoff of the medium in the pipeline through the close fit or separation of the gate and the valve seat.
Diameter: DN100-DN2000
Pressure: 0.1Mpa~1.6Mpa
Temperature: -25~+600℃
Medium: Dust containing particles, etc
Body: HT200,QT,WCB,SS
Interface form: Flanged
STANDARD: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB, Customized

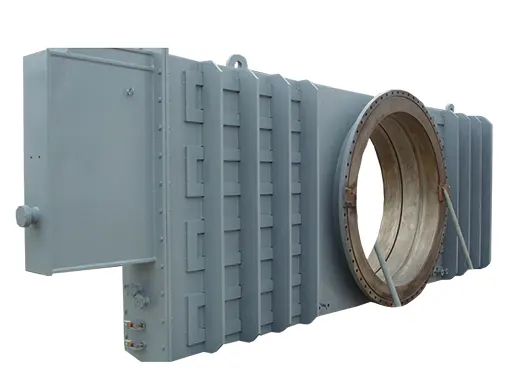

Water-cooled jacket removes excess heat, suitable for high-temperature fluid systems.
Large diameter design handles high-volume fluids with minimal pressure drop.
Precision gate-seat fit ensures tight closure, preventing leakage in high-pressure applications.
Reinforced body (e.g., carbon steel) resists deformation under heavy loads, extending service life.
The professional 3D software for structural analysis, material selection and process planning to virtually simulate the reliability of materials under different temperatures, mediums andpressures, and finally validate them through finite element analysis to provide customers with safe and reliable products.
From raw materials to production, sealing performance testing, strength testing, functional testing, to surface quality testing and packaging and shipping, the whole process is strictly in accordance with API standards and support third-party independent organizations to test and certify our products.
