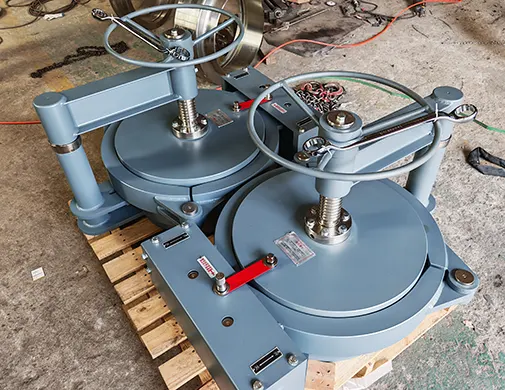

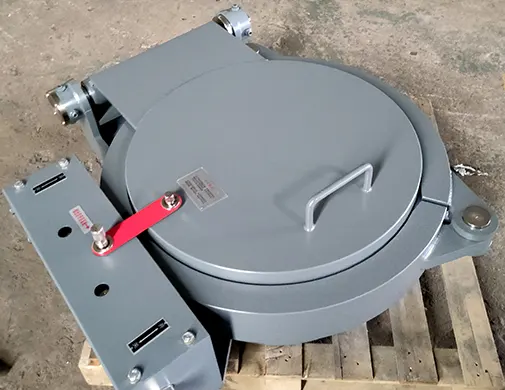

The clamp quick opening closure mainly uses the opening and closing screw to extend lugs at both ends of its closed chamber on the upper part of the quick-opening blind plate. Application in the pipeline, the receiving/transmitting device of the pipe cleaner, various filters, filter separators, pressure kettles, vulcanizing tanks, various quick-opening door pressure vessels.

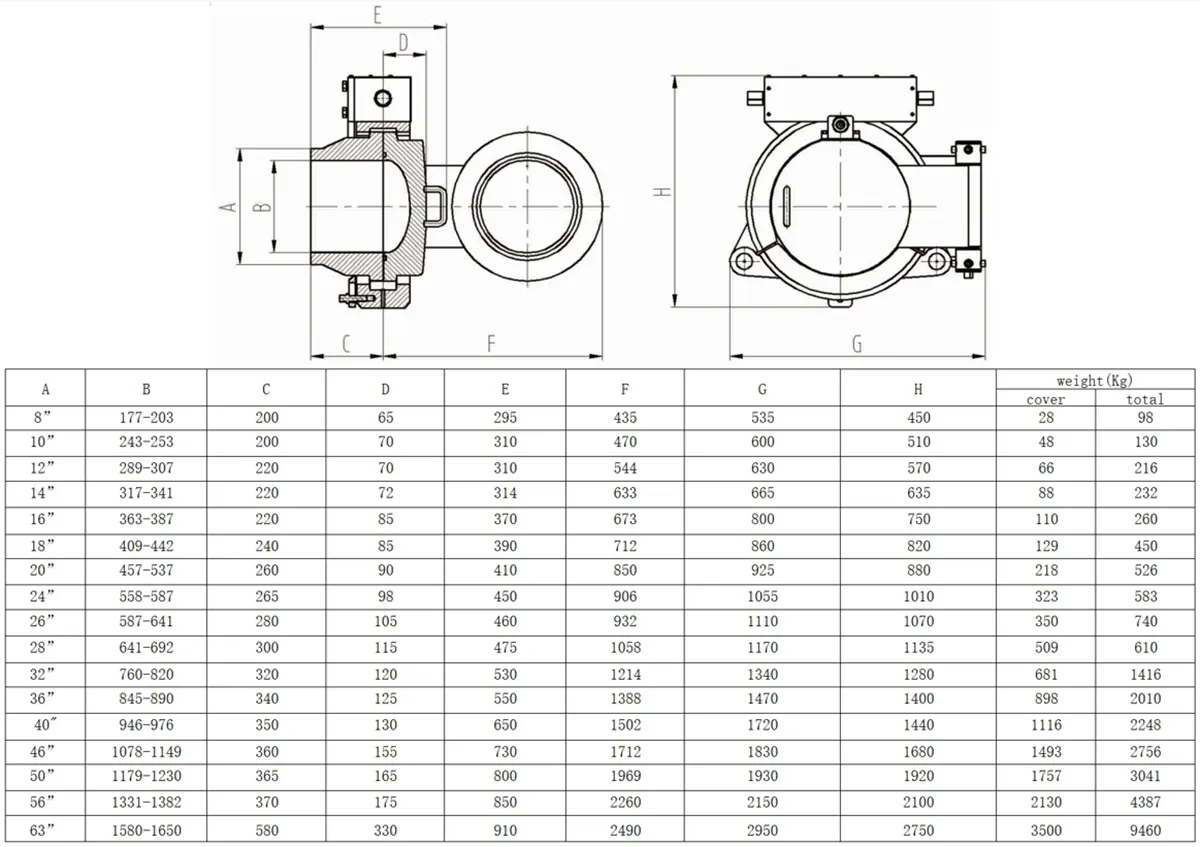

Diameter: DN100-DN2000
Pressure: 1.0Mpa~50Mpa (available upon request)
Temperature: ≤200℃
Body: HT200,QT,WCB,SS
Standard: ANSI, API, DIN, EAC, JIS, CE, ISO, EN, GB, Customized

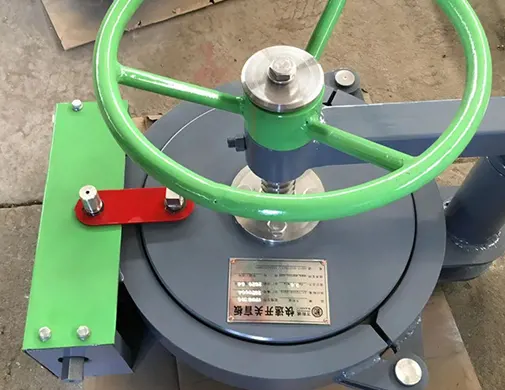

Lever-based clamp design enables quick locking/unlocking, speeding up access to pipeline interiors.
Even clamp force ensures tight gasket (e.g., silicone) contact, preventing leaks in high-pressure setups.
No complex tools needed; manual clamp actuation suits frequent opening/closing scenarios.
Reinforced clamp components (e.g., alloy steel) resist wear, maintaining performance over repeated use.
The professional 3D software for structural analysis, material selection and process planning to virtually simulate the reliability of materials under different temperatures, mediums andpressures, and finally validate them through finite element analysis to provide customers with safe and reliable products.
From raw materials to production, sealing performance testing, strength testing, functional testing, to surface quality testing and packaging and shipping, the whole process is strictly in accordance with API standards and support third-party independent organizations to test and certify our products.
Online
Provide free
Video visits
Guide installation
12-month warranty
