The Key Role of Goggle Valves in Metallurgical Gas Pipeline Networks

Metallurgical gas pipelines are the “main arteries” of the energy system in steel enterprises, responsible for the transportation, distribution, and utilization of by-product gases such as blast furnace gas, converter gas, and coke oven gas. However, gas is toxic, flammable, and explosive, and the safe operation of its pipeline system directly affects personnel safety and production stability. How to achieve absolutely reliable medium cutoff when gas pipelines need maintenance, equipment replacement, or system switching is a core safety issue facing metallurgical enterprises.

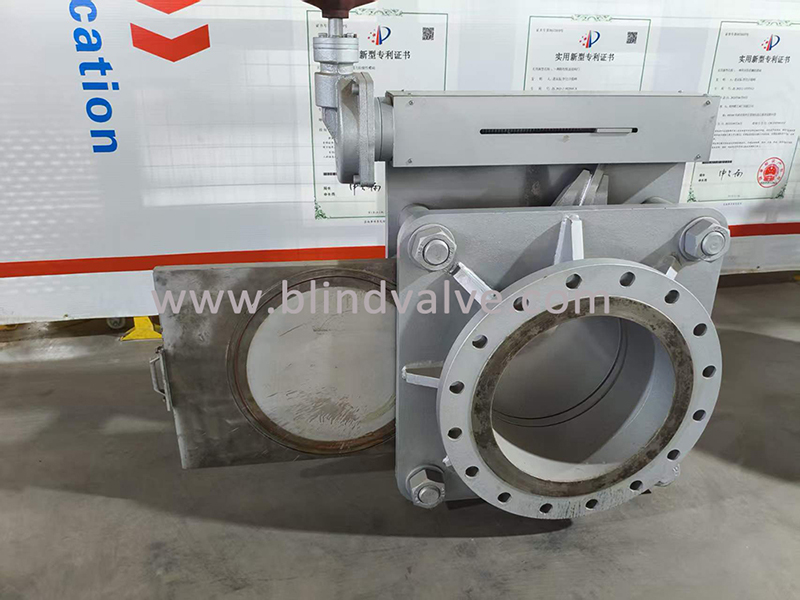

Goggle valves (also known as fan-shaped goggle valves, blind valves) are specialized safety shut-off valves designed to solve this problem. They achieve complete isolation or conduction of the medium through the rotation of the blind plate and through-hole plate on the gate, creating a physical, absolute cutoff in the pipeline. As a safety shut-off valve developed according to GB6222 “Safety Regulations for Industrial Enterprises’ Gas,” goggle valves play an irreplaceable “safety lock” role in metallurgical gas pipelines.

The “Safety Regulations for Coal Gas in Industrial Enterprises” (GB6222-2005) clearly stipulates the requirements for coal gas isolation devices. The standard requires that reliable isolation devices for coal gas facilities must be in the form of slide gate valves, blind flanges, goggle valves, or sealed butterfly valves (only for use with water-sealed valves). Gate valves, butterfly valves, ball valves, and other closed valves cannot be used as reliable shut-off devices alone due to potential leakage risks such as valve core wear and seal failure; they can only be used for regulation or temporary shut-off.

The core requirement for reliable shut-off is the formation of a physical isolation. Ordinary valves rely on the sealing pair between the valve core and the valve seat to achieve shut-off. Over long-term use, the sealing surface inevitably wears down, leading to minor leaks. The shut-off principle of goggle valves is completely different—it uses a solid blind flange rotated to the position of the pipe cross-section, physically blocking the medium passage with a single metal plate, achieving true “zero-leakage” shut-off.

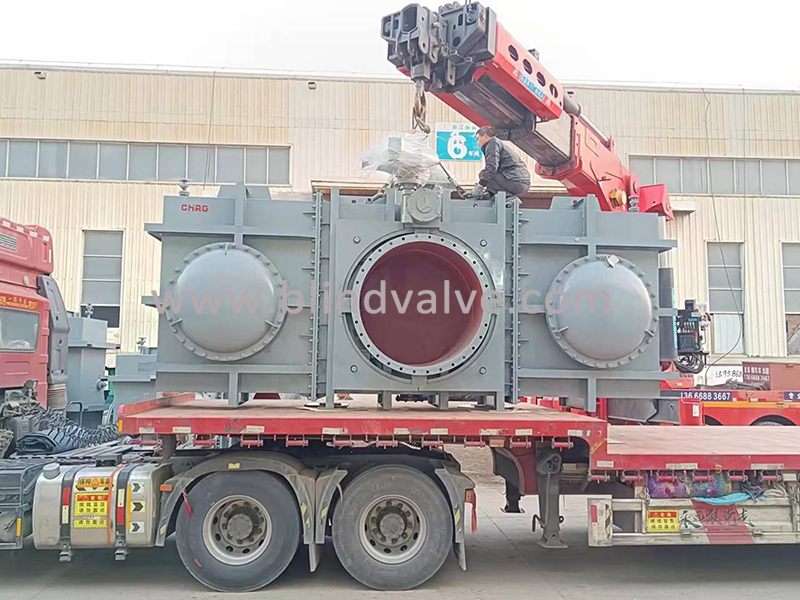

ZZJD Valve, a national high-tech enterprise located in the “Hometown of Valves in China,” has accumulated over forty years of technological expertise. It has developed a complete product system in the field of goggle valves (line blind valves), encompassing various structural forms including closed, fan-type, rotary, and compact types. This system covers a full range of diameters from DN50 to DN5000, with pressure ratings adaptable to PN0.25~4.0MPa, meeting the shut-off requirements of all scenarios from branch pipes to main pipelines. Its core technical characteristics are highly compatible with the working conditions of metallurgical gas pipeline networks.

ZZJD goggle valves have been widely applied in the construction and renovation projects of gas pipeline networks for several large metallurgical enterprises, including Laiwu Steel, Rizhao Steel, and Xiangtan Steel, with significant results. In a blast furnace gas pipeline network renovation project, by replacing old isolation equipment and using Zhengzhou Jinggong’s tiered configuration solution, pipeline maintenance isolation time was reduced by more than 85%, and the impact range of single-section pipeline failures was reduced by 60%. After applying dedicated wear-resistant and corrosion-resistant models to high-temperature raw gas pipelines, valve lifespan doubled, and the rate of unplanned pipeline downtime decreased significantly. With stable operating condition adaptability and extremely low failure rate, Zhengzhou Jinggong spectacle valves effectively solve industry problems such as valve leakage, jamming, and failure in metallurgical gas pipeline networks, providing a solid guarantee for enterprises’ safe production, cost reduction, and efficiency improvement.

In the safety management and control system of metallurgical gas pipeline networks, ZZJD goggle valves, with their patented structural design, differentiated operating condition adaptability, and stable and reliable isolation performance, undertake the core functions of pipeline safety isolation, process switching, and emergency protection, making them key equipment for the inherent safety of metallurgical gas systems. Through systematic configuration optimization including graded selection, scientific layout, standardized operation and maintenance, and intelligent upgrades, the product’s performance advantages can be fully released, achieving multi-dimensional improvements in pipeline safety, stability, and economy.

As the metallurgical industry continues its green, intelligent, and safe transformation, gas pipeline network management and control standards will continue to upgrade. In the future, ZZJD goggle valves will continue to iterate towards high adaptability, high intelligence, and long service life, further strengthening their adaptability to extreme operating conditions and improving intelligent sensing and predictive maintenance functions. Metallurgical enterprises can effectively strengthen the safety defense line of gas systems by relying on ZZJD’s professional products and configuration solutions to optimize pipeline layout, helping enterprises achieve dual empowerment of safe and efficient production.
